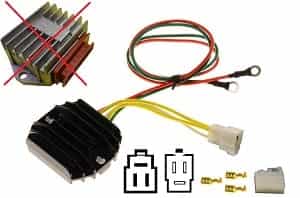

Improved MOSFET Voltage Regulator / Rectifier - CARR5115
More effective and gets less warm than the original regulator rectifier, therefore more reliable!
Suitable for Lithium-Ion - LiFePO4 LFP batteries!
3 Year warranty
14,6V / 39A

Connector: CARC018-3

Among others suitable for:
Rotax 912 Régulateur de tension redresseur
Rotax 914 Régulateur de tension redresseur
Rotax 912UL Régulateur de tension redresseur
Rotax 914UL Régulateur de tension redresseur

OEM numbers:
343620
362001
343152
Ducati Energia Charging System
Made in Italy / brevettato / DUCATI energia / 343142/ 12Vcd. 18A

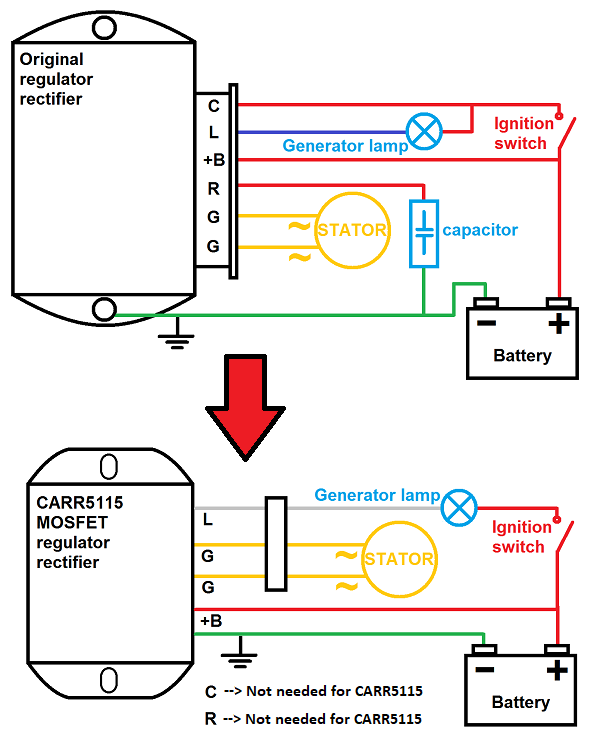

12V power and ground leads directly to the battery for a direct current flow to prevent loss of power through an extra connector.
Connection 'R' is not needed when you use this imptoved MOSFET regulator rectifier.
The capacitor can be removed in the new situation.
Also connection 'C' is not needed because the regulator rectifier switches off automaticly when there is no input from the generator stator.






In PDF (LINK)

Team-Carmo

Digital ignition systems.

Our digital ignition systems come with 3 years warranty. Production errors, quality issues and internal problems are covered by this warranty.
The Carmo digital ignition systems are protected against high voltage peaks, defective HT coils and reverse battery connection.
This protection means that the Carmo digital ignition will not be damaged immediately in case of faulty electronics in your motorcycle.
Long term use of a motorcycle with faulty electronics may still result in damage to the Carmo digital ignition system.
This means that without solving the electrical issue the Carmo digital ignition could break down after a while.

If research shows that your Carmo digital ignition was damaged by faulty electrical parts, the warranty rights will not be valid.
If this situation occurs we will attempt to repair your ignition system in order to keep the costs as low as possible.
If the system is beyond repair a new product will be offered at a reduced price.
In all cases we will try our best to offer an acceptable solution.

Testing your original ignition module is free of charge when purchasing one of our replacement systems.
During the test we are often able to find out what caused your original module to break down.
This way you will know for sure if your original module really needs replacement, and you’ll be able to solve other electrical issues that may not be known yet.

Team Carmo.
